    AP331AWG-7 1.5A 20V MOSFET Driver 6ns Rise/Fall SOT-25 4.5-18V Input -40°C to +125°C

    Ask Lasest Price
    Brand Name : Diodes Incorporated
    Model Number : AP331AWG-7
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    AP331AWG-7 1.5A 20V MOSFET Driver 6ns Rise/Fall SOT-25 4.5-18V Input -40°C to +125°C

    AP331AWG-7


    Features

    • Wide supply Voltage range: 2.0V to 36V Single or dual supplies: ±1.0V to ±18V

    • Very low supply current drain (0.4mA) – independent of supply voltage

    • Low input biasing current: 150nA

    • Low input offset current: ±70nA

    • Low input offset voltage: ±4mV

    • Input common-mode voltage range includes ground

    • Differential input voltage range equal to the power supply voltage

    • Low output saturation voltage: 250mV at 4mA

    • Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems

    • SOT25 and SOT25R: Available in “Green” Molding Compound (No Br, Sb)


    Applications

    • High precision comparators

    • Reduced VOS drift over temperature

    • Eliminates need for dual supplies

    • Allows sensing near ground

    • Compatible with all forms of logic

    • Power drain suitable for battery operation


    General Description

    The AP331A is a precision voltage comparators with an offset voltage specification as low as 8.0 mV max for comparator which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The comparator also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.

    Application areas include limit comparators, simple analog to digital converters; pulse, square wave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates. The AP331A is designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, the AP331A will directly interface with MOS logic where their low power drain is a distinct advantage over standard comparators.


    INFORMATION

    Category
    Manufacturer
    Diodes Incorporated
    Series
    -
    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Type
    General Purpose
    Number of Elements
    1
    Output Type
    CMOS, DTL, ECL, MOS, Open-Collector, TTL
    Voltage - Supply, Single/Dual (±)
    2V ~ 36V, ±1V ~ 18V
    Voltage - Input Offset (Max)
    8mV @ 5V
    Current - Input Bias (Max)
    0.4µA @ 5V
    Current - Output (Typ)
    16mA @ 5V
    Current - Quiescent (Max)
    2.5mA
    CMRR, PSRR (Typ)
    -
    Propagation Delay (Max)
    -
    Hysteresis
    -
    Operating Temperature
    0°C ~ 70°C
    Package / Case
    SC-74A, SOT-753
    Mounting Type
    Surface Mount
    Supplier Device Package
    SOT-25
    Base Product Number

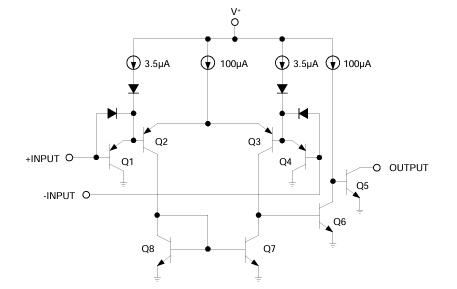

    Drawing

    Our advantage :

    • High quality products --- our offers are 100% new and original, ROHS
    • Competitive price --- good Purchase channels with good price.
    • Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
    • Adequate inventory --- With the support of our strong Purchasing team,
    • Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

    be sure to meet your need for all kinds of components. ^_^
