| Brand Name : | NXP |
| Model Number : | PBSS5350T,215 |
| Certification : | CE, GCF, ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 3-5 working days after received the payment |
PBSS5350T,215 PNP Transistor 40V Voltage 3A Current Low Vce(sat) High Efficiency SOT-223 Package Halogen-Free Pb-Free Robust Performance for Power Switching andamp; Amplification
andnbsp;
Features
andbull; Low collector-emitter saturation voltage VCEsat and corresponding low RCEsat
andbull; High collector current capability
andbull; High collector current gain
andbull; Improved efficiency due to reduced heat generation
andnbsp;
Applications
andbull; Power management applications
andbull; Low and medium power DC/DC converters
andbull; Supply line switching
andbull; Battery chargers
andbull; Linear voltage regulation with low voltage drop-out (LDO)
andnbsp;
description
Product data sheet PNP low VCEsat transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
NPN complement: PBSS4350T
andnbsp;
INFORMATION
Category | andnbsp; | |
Mfr | andnbsp; | |
Series | - | andnbsp; |
Packaging | Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg; | andnbsp; andnbsp; andnbsp; |
Part Status | Active | andnbsp; |
Transistor Type | andnbsp; | |
Current - Collector (Ic) (Max) | 2 A | andnbsp; |
Voltage - Collector Emitter Breakdown (Max) | 50 V | andnbsp; |
Vce Saturation (Max) @ Ib, Ic | 390mV @ 300mA, 3A | andnbsp; |
Current - Collector Cutoff (Max) | 100nA (ICBO) | andnbsp; |
DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1A, 2V | andnbsp; |
Power - Max | 540 mW | andnbsp; |
Frequency - Transition | 100MHz | andnbsp; |
Operating Temperature | 150anddeg;C (TJ) | andnbsp; |
Mounting Type | Surface Mount | andnbsp; |
Package / Case | TO-236-3, SC-59, SOT-23-3 | andnbsp; |
Supplier Device Package | TO-236AB | andnbsp; |
Base Product Number |
andnbsp;

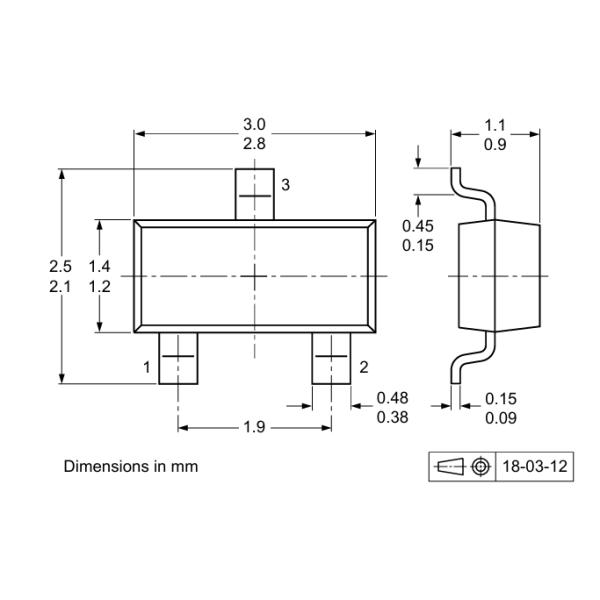

Drawing
