    ADS8363SRHBR ADC 16-Bit Resolution 500kSPS Throughput 6-Channel Simultaneous Sampling Low Power (85mW) Parallel Interface ±2.5V Bipolar Input Internal

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : ADS8363SRHBR
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    ADS8363SRHBR ADC 16-Bit Resolution 500kSPS Throughput 6-Channel Simultaneous Sampling Low Power (85mW) Parallel Interface ±2.5V Bipolar Input Internal

    ADS8363SRHBR ADC 16-Bit Resolution 500kSPS Throughput 6-Channel Simultaneous Sampling Low Power (85mW) Parallel Interface ±2.5V Bipolar Input Internal Reference 64-pin QFP Package


    Features

    • Eight Pseudo- or Four Fully-Differential Inputs

    • Simultaneous Sampling of Two Channels

    • Excellent AC Performance:

    – SNR:

    93 dB (ADS8363)

    85 dB (ADS7263)

    73 dB (ADS7223)

    – THD:

    –98 dB (ADS8363)

    –92 dB (ADS7263)

    –86 dB (ADS7223)

    • Dual Programmable and Buffered 2.5-V Reference Allows:

    – TwoDifferent Input Voltage Range Settings

    – Two-Level PGA Implementation

    • Programmable Auto-Sequencer

    • Integrated Data Storage (up to 4 per channel) for Oversampling Applications

    • 2-Bit Counter for Safety Applications

    • Fully Specified Over the Extended Industrial Temperature Range:–40°C to +125°C


    Applications

    • Motor Control: Current and Position Measurement including Safety Applications

    • Power Quality Measurement

    • Three-Phase Power Control

    • Programmable Logic Controllers

    • Industrial Automation

    • Protection Relays


    Description

    The ADS8363 is a dual, 16-bit, 1-MSPS analog-to digital converter (ADC) with eight pseudo- or four fully-differential input channels grouped into two pairs for simultaneous signal acquisition. The analog inputs are maintained differentially to the input of the ADC. The input multiplexer can be used in either pseudo differential mode, supporting up to four channels per ADC (4x2), or in fully-differential mode that allows to convert up to two inputs per ADC (2x2). The ADS7263 is a 14-bit version and the ADS7223 is a 12-bit version of the ADS8363.

    The ADS8363, ADS7263, and ADS7223 offer two programmable reference outputs, flexible supply voltage ranges, a programmable auto-sequencer, data storage of up to four conversion results per channel, and several power-down features.

    All devices are offered in a 5-mm x 5-mm, 32-pin VQFN package.


    INFORMATION

    Category
    Manufacturer
    Texas Instruments
    Series
    -
    Packaging
    Tape & Reel (TR)
    Part Status
    Active
    Number of Bits
    16
    Sampling Rate (Per Second)
    1M
    Number of Inputs
    4, 8
    Input Type
    Differential, Pseudo-Differential
    Data Interface
    SPI
    Configuration
    MUX-S/H-ADC
    Ratio - S/H:ADC
    1:1
    Number of A/D Converters
    2
    Architecture
    SAR
    Reference Type
    External, Internal
    Voltage - Supply, Analog
    2.7V ~ 5.5V
    Voltage - Supply, Digital
    2.3V ~ 3.6V, 5V
    Features
    Simultaneous Sampling
    Operating Temperature
    -40°C ~ 125°C
    Package / Case
    32-VFQFN Exposed Pad
    Supplier Device Package
    32-VQFN (5x5)
    Mounting Type
    Surface Mount
    Base Product Number

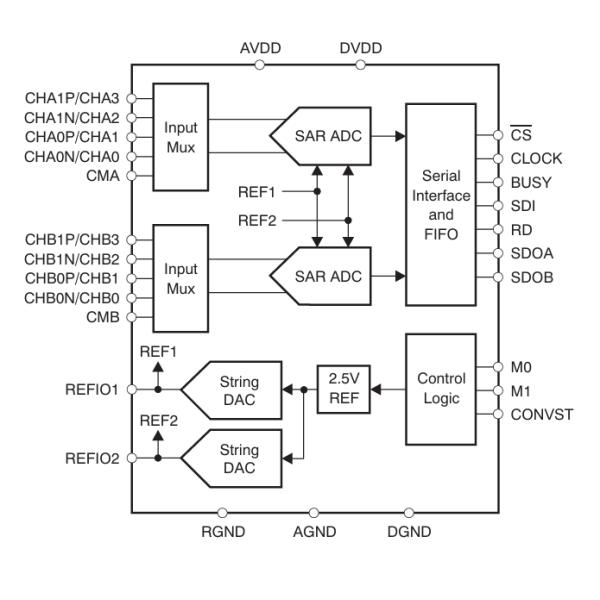

    Drawing
