    Molex FFC Shrouded Wire To Board Terminal Block 2 Row 2.54mm Pitch

    Ask Lasest Price
    Brand Name : Molex / TOP
    Model Number : 70246-2004
    Certification : CE,ROHS
    Price : $0.5pcs
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 1000000pcs/month
    Delivery Time : 2-4 days
    • Product Details
    • Company Profile

    Molex FFC Shrouded Wire To Board Terminal Block 2 Row 2.54mm Pitch

    MOLEX 70246-2004
    Molex 2.54mm pitch low profile,shrouded Through Hole Straight Wire-to-Board 2 row pin header.
    andnbsp;
    Description:
    2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 20 Circuits, 0.127andmicro;m Gold (Au) Plating, Tin(Sn) PC Tail Plating
    Current - Maximum per Contact 2.5A Voltage - Maximum 250V DC Solder Process Data Duration at Max. Process Temperature (seconds) 010 Lead-free Process Capability WAVE Max. Cycles at Max. Process Temperature 001 Process Temperature max. C 235 Material Info Reference - Drawing Numbers Application Specification 713080001-AS-000 Packaging Specification PK-87835-001 Product Specification PS-70246-100-001 Sales Drawing SDA-70246-XX20-25_39
    andnbsp;
    Specification :

    andmiddot; 2.54mm pitch dual row board-to-board C-Grid connector system

    andmiddot; Press-fit compliant pin provides design flexibility

    andmiddot; Pre- assembled FFC and IDT connector assemblies

    andmiddot; Gross weight: 2.505 g

    andnbsp;
    Note:
    1. PIN push out force 0.9072kg/2LBS MN.
    2. PIN Solder ability per Molex Spece. ES-152
    3. Product Spec. PS-70246 Applies
    4. Wafer to be flat withn .003 MM/MM
    5. Dimensions for plating location: Measure point for thickness, Minimum coverage
    6. Gold end of pin unless overall plated.
    7. Finish :
    *-571: 15 MICRO inches min gold plate on contact and 75 micro inches min tin plate on solderall both over 50 micro inches MIN Nickel overall.
    * -574: 30 MICRO INCHES MIN gold plate on contact and 75 micro inches min tin plate on solderall both over 50 micro inches MIN Nickel overall.
    * -544: 5 MICRO INCHES MIN gold plate on contact and 75 micro inches min tin plate on solderall both over 50 micro inches MIN Nickel overall.
    andnbsp;
    andnbsp;

    Part numberCKT SIZEVOID CKTDIM ADIM BDIM CDIM DVOID CKT.ONLY APPLY TO PLATING CODE
    70246-08**08-7.6214.7317.7815.24-
    70246-10**10110.1617.2720.3217.78-
    70246-12**12-12.719.8122.8620.32-
    70246-14**14-15.2422.3525.422.86-
    70246-16**16-17.7824.8927.9425.4-
    70246-20**20-22.8629.9733.0230.48-
    70246-24**24-27.9435.0538.135.56-
    70246-26**26-30.4837.5940.6438.1-
    70246-30**30-35.5642.6745.7243.18-
    70246-34**34-40.6447.7550.848.26-
    70246-40**40-48.2655.3758.4255.88-
    70246-44**44-53.3460.4563.560.96-
    70246-50**50-60.9668.0771.1268.58-
    70246-56**56-68.5875.6978.7476.2-
    70246-60**60-73.6680.7783.8281.28-
    70246-64**64-78.7485.8588.986.36-
    70246-72**72-88.996.0199.0696.52-
    70246-25**262630.4837.5940.6438.1-
    70246-100310110.1617.2720.3217.78571

    andnbsp;
    andnbsp;
    Applications
    Automotive, Communications andamp; Networking, Consumer Electronics, Lighting, Medical and so on .
    andnbsp;
    Drawing:

    andnbsp;

    andnbsp;

    andnbsp;

    andnbsp;

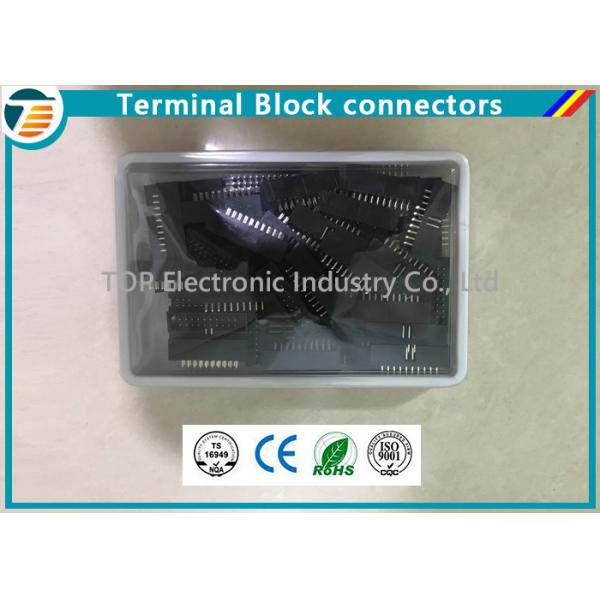

    package andnbsp;show:
    andnbsp;

    andnbsp;
    andnbsp;
    andnbsp;


    andnbsp;
    andnbsp;Our advantage :

    • High quality products --- our offers are 100% new and original, ROHS
    • Competitiveandnbsp; price --- good Purchase channels with good price.
    • Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
    • Adequate andnbsp;inventory --- With the support of our strong Purchasing team,
    • Fast delivery ---andnbsp; we will ship the goods within 1-3 working days after the payment confirmed.

    andnbsp;
    andnbsp;
    andnbsp;
    Product andnbsp;List:
    Electric Connectors:
    Pinandnbsp;Header Connector, Femaleandnbsp;Header Connector,Boxandnbsp;Header Connector,ICandnbsp;Socket,
    Shroudedandnbsp;Header Connector,IDCandnbsp;Socket Connector,Dip Plug Connector,
    Micro Match Connector(Red IDC Socket)andnbsp;,Ribbonandnbsp;Grey Flatandnbsp;Cable,Edge Cardandnbsp;Connector,
    Zifandnbsp;Socket Connector,Sip IC Socket(Machineandnbsp;Pinandnbsp;Series)andnbsp;,Dip Strip Adapter,
    DIN41612 Eurocard Connector,Miniandnbsp;Jumper Connector,D-Subandnbsp;Connector,
    D-Subandnbsp;Metalandamp;Plasticandnbsp;Hoods,Dipandnbsp;Switch,PLCCandnbsp;Socket,Scsi Connector,
    Circularandnbsp;Microandnbsp;Jackandnbsp;Connector,Waterproofandnbsp;Connector,Breadboard,andnbsp;Pcb Jackandnbsp;Etc
    andnbsp;
    Terminal blocks:
    andnbsp;
    Pcb Screw Terminal block,andnbsp;andnbsp;Pluggable Terminal Block,andnbsp;andnbsp;Pcb Spring Terminal Block,
    andnbsp;
    Barrier Terminal Block,andnbsp;Feed Through Terminal Block,andnbsp;Wago Terminal Block Connector
    andnbsp;
    andnbsp;Our high quality products , competitiveandnbsp; price and professional service, be sure to meet your need for all kinds of components.andnbsp;andnbsp;andnbsp; ^_^
