| Brand Name : | TOP |
| Model Number : | TOP-SMA-2 |
| Certification : | CE,ROHS |
| Price : | $1/pcs ~1.2$/pcs |
| Payment Terms : | T/T, Western Union,paypal |
| Supply Ability : | 30kpcs/month |
| Delivery Time : | 3-5 working days after receiving the payment |
Female Bulkhead Coaxial Connectorandnbsp; 50 Ohms for 1.13mm / 1.32mm / 1.37mm Cable
andnbsp;
andnbsp;
Type 1: TOP-SMA-2-A: SMA straight male for RG174
Type 2: TOP-SMA-2-B: SMA straight RP male for RG174
andnbsp;
Product Description
The SMA series connectors for use with semi-rigid and flexible RF cables, are used for microwave applications requiring high performance. They are characterized by their small size and high reliability ,and be inter-changeable with the same-type connectors of aboard.
andnbsp;
Broadband performance DC to 18 GHz with low reflection stainless steel construction and andfrac14; - 36 threaded coupling offers high performance in a compact design.
andnbsp;
Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.
andnbsp;
andnbsp;
Product Details
andnbsp;
SMA Connectors for semi-rigid and flexible cables.,
For use with semi-rigid coaxial cable
Designed to provide high frequency performance at high power
ratings in small diameters
Stud contact types are provided in both captive and non-captive
forms
Connectors available for the two most commonly used microwave
cables, RG402/U and RG405/U
Used with a variety of flexible RF cables
Suitable for design and development work and where large quantity
usage requires repeatability in performance
Available in non-captive contact form for optimum electrical
performance
Assembly is acheived by soldering the centre contact and crimping
braid and outer sleeve
Pressure sleeve clamp versions for use with flexible cables
Captive contacts ensure correct positioning and mating
Ideal for field service applications
andnbsp;
andnbsp;
andnbsp;
Material andamp; Plating
Shell ..............Brass ................Nickel-plated
Contact pin ........brass.................gold -plated
Elastic contact.... beryllium ............gold or silver-plated
Insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated
andnbsp;
andnbsp;
Technical characteristics
Temp. range | -55~ +155 anddeg;Candnbsp;andnbsp;(PEandnbsp;Cableandnbsp;-~andnbsp;+85andnbsp;anddeg;C) |
Impedance | 50andOmega; |
Frequency Range | 0~12.4GHz |
Working Voltage | 190V,250V,355V |
Withstand Voltage | 500V,750V,1000V |
Contact resistance | Center Contact: andle;5mandOmega; |
Outer Contact: andle;5mandOmega; | |
Insulation resistance :andge;5000 mandOmega; | |
Durability(mating) | 500 (cycles) |
andnbsp;
andnbsp;
andnbsp;

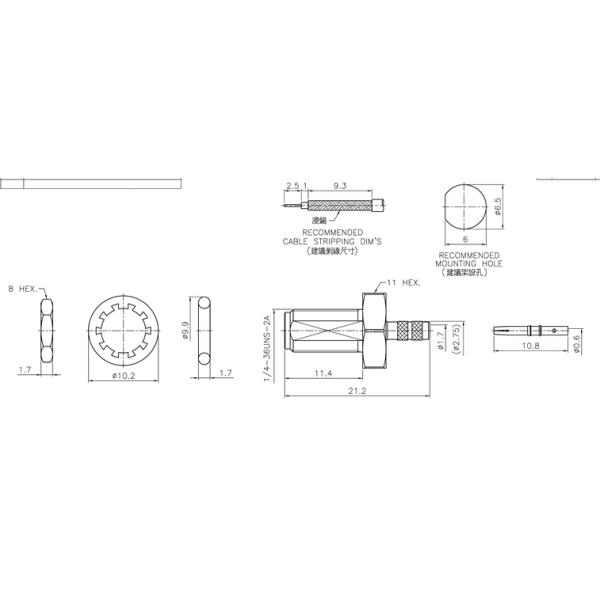

Drawing:

andnbsp;
andnbsp;
Our main RF coaxial connector :
All series connectors:
SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,
BNC,TNC,FAKRA,GT5,U.FL, GSC,IPEX etc
andnbsp;
We use only the best quality andnbsp;components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.
|
