    Trimble Ultra Low Power 12 Channel GPS Receiver Module C1919A - 3.3V

    Ask Lasest Price
    Brand Name : Trimble
    Model Number : C1919A 67650-10
    Certification : CE,ROHS,
    Price : 24$/pcs
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working days after receiving the payment
    • Product Details
    • Company Profile

    Trimble Ultra Low Power 12 Channel GPS Receiver Module C1919A - 3.3V

    Trimble Ultra Low Power 12 Channel GPS Receiver Module C1919A - 3.3V


    Part number 67650-10


    Introduction :

    Condor GPS modules help you bring innovative products to market faster to capture greater market share. As a completely qualified positioning solution with full warranty, Condor modules harbor none of the development risk or hidden costs associated with GPS chipset implementations. Select a Condor GPS module and leverage Trimble’s 30+ years of experience in positioning solutions.

    The Condor GPS family includes multiple modules with different form factors and interface options. All the modules in the family offer top tier positioning performance. The features and specifications listed below are typical for all Condor GPS modules in the family.


    Key Feature:

    Trimble’s Condor family of GPS modules represents the smart alternative to GPS chipsets for many consumer and commercial positioning applications. Trimble offers Condor modules in multiple form factors and flexible interface options. The modules in the Condor family share several common characteristics: top tier positioning performance, the best components, and the highest production quality standards.

    The Condor C1919 is a 19mm x 19mm x 2.5mm surface-mount format common with the Trimble Copernicus® II and Panda GPS modules. As a surface-mount module with 28 reflow-solderable edge castellations, the C1919 requires no costly I/O and RF connectors.


    Specification:

    • 3.3V for battery powered apps

    • Trimble quality at low cost

    • 12-channel operation

    • -160dBm tracking, -146dBm aquisition

    • One serial port (TTL level)

    • Miniature HFL antenna connector

    • Operating temp -40° to +85°C

    • Next-generation RF technology

    • 19 mm x 19 mm x 2.54 mm

    • Sized for portable devices

    • NMEA support

    • SBAS (WAAS, EGNOS) capable (transparent to user)

    • Different antennas available

    • Starter kit available

    • Ultra-low power: 90mW @ 3.3V


    Ordering Details


    Board

    68674-00 C1011 Condor Module (no LNA, no RTC, no antenna detection)

    *

    68676-10 C1216 Condor Module ( LNA, RTC, antenna detection)

    **

    68675-00 C1722 Condor Module ( LNA, RTC, antenna detection)

    ***

    67650-10 C1919A Condor Module (LNA, RTC, no antenna detection)

    *

    67650-00 C1919B Condor Module (LNA, no RTC, no antenna detection)

    *

    67650-20 C1919C Condor Module (LNA, RTC, no antenna detection)

    *

    70896-00 C2626 Condor Module (LNA, RTC, antenna detection)

    ***



    * Available in trays of 20 pieces and 100/500 piece reels



    ** Available in trays of 50 pieces and 500 piece reels

    *** Available in trays of 36 pieces and 500 piece reels

    **** Available in trays of 250 pieces

    Otherwise, all parts are also available in small quantities

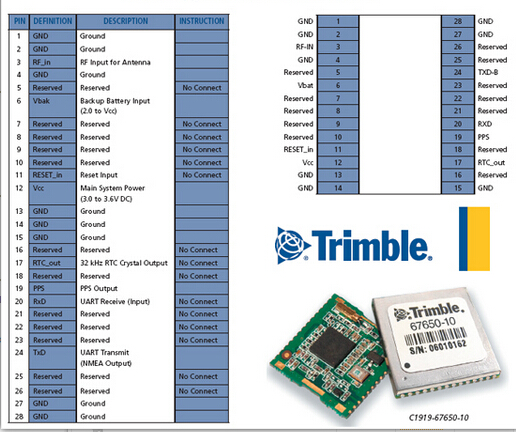

    Module show:
