    Sierra Wireless 3G Modem Module MC8705 with Qualcomm MDM8200A Chipset

    Ask Lasest Price
    Brand Name : SIERRA
    Model Number : MC8705
    Certification : FCC, IC, CE, GCF-CC, PTCRB
    Price : 50~55 usd
    Payment Terms : T/T, paypal or western Union
    Supply Ability : 5,000pcs per month
    Delivery Time : 2-3 working days after received the payment
    • Product Details
    • Company Profile

    Sierra Wireless 3G Modem Module MC8705 with Qualcomm MDM8200A Chipset

    Sierra Wireless 3G Modem Module MC8705 with Qualcomm MDM8200A Chipset


    Product Introduction

    The Sierra Wireless AirPrime MC8705 embedded module offers quad-band HSPA+ data speeds (up to 21 Mbps peak download speeds) across all 3G/HSPA networks operating in Australia and New Zealand.

    In addition the MC8705 offers integrated GPS (through support for Qualcomm's gps One technology) allowing developers to design in one module for both high speed cellular and GPS.

    The HSPA+ data speeds of the MC8705 allow developers to expand their applications into areas requiring higher bandwidth including video download, 3G broadband ethernet, and internet access.

    The MC8705 replaces the MC8700 HSPA+ quad-band module. Advantages of the new module include support for GPS and lower prices.


    Key Features

    § HSPA+ with peak downlink speeds up to 21 Mbps and peak uplink speeds up to 5.76 Mbps

    § Support for GPS including, Standalone, Assisted and gpsOneXtra

    § Uses Qualcomm's MDM8200A chipset

    § Replaces and updates MC8700 in a cost reduced package


    1

    1. High-speed downlink HSPA + 21Mbps, uplink 5.76Mbps

    2

    2. Support standalone GPS and A-GPS, GPS ONE

    3

    3.Complete around 3.FCC, CE certification and other world

    4

    4.800 / 850/900/1800/1900 / 2100MHz

    5

    5. Online stability and support WINDOW, LINUX, Android system

    6

    6. High-speed downlink HSPA + 21Mbps, uplink 5.76Mbps

    7

    7. Support standalone GPS and A-GPS, GPS ONE

    8

    Operating SystemsWindows XP,Windows Vista,Window 7,Linux


    Information:


    Air Interface

    HSUPA
    HSDPA
    EDGE
    GPRS
    GSM

    Peak Download Rate

    7.2 Mbps

    Peak Upload Rate

    5.76 Mbps

    Frequency Bands

    WCDMA 850/900/1900/2100 MHz

    Regulatory Approvals

    FCC, IC, CE, GCF-CC, PTCRB

    Standby and Idle

    4-5mA

    GSM GPRS Max

    2.6A

    HSxPA Max

    770mA

    Codec

    HR, FR, EFR, AMR

    Echo Cancellation and Noise Reduction

    Yes

    DTMF

    Yes

    UART

    1x 8-wire

    USB

    USB 2.0 high speed

    ADC

    1

    Flash LED Output

    1

    SIM Interface

    1.8V or 3V

    Antenna Diversity

    Yes

    Location Solution

    gpsOne

    Control Options

    AT commands

    Management Services

    No

    Device Dimensions

    51 x 30 x 4.5mm

    Temperature Range

    -25°C to +60°C


    Key benefits:

    · High-speed, broadband connectivity

    · Best-in-class technical and integration support

    · Easy integration

    · Premium functionality and performance

    · Simplified certification and commercialization

    · Compact size and light weight

    · Antenna diversity for improved fringe performance

    · Quad-band for global connectivity


    Product Application

    The Sierra Wireless AirPrime MC8705 HSPA+ embedded modules enable you to expand your product development into applications requiring higher bandwidth. They take advantage of the fastest mobile broadband networks available worldwide, offering up to 21Mbps download speeds.

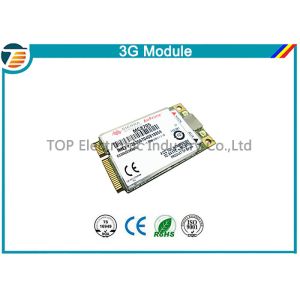

    Product display:


    OUR Offer:


    communication antennas & modules with wonderful solution, Perfect after-sales service, strict quality testing and competitive price.module brands includes Sierra Wiressless, Simcom, Cinterion, U-blox, Hua wei , ZTE, Holux, Globalsat, GlobaTop, Skylab, Telit, etc.

    We're also one of the biggest stocking distributors of active and passive electronic components located in Shen Zhen
