    Screw Mounting Mini GPS Active Antenna Waterproof GPS Receiver Antenna

    Ask Lasest Price
    Brand Name : TOP
    Model Number : TOP-GPS06
    Certification : CE,ROHS
    Price : 2.5$/PCS~$3/PCS
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 20k pcs/ month
    Delivery Time : 3-5 working days after receiving the payment
    • Product Details
    • Company Profile

    Screw Mounting Mini GPS Active Antenna Waterproof GPS Receiver Antenna

    Screw Mounting Mini GPS Active Antenna Waterproof GPS Receiver Antenna


    Specification:

    Item

    Specifications

    Antenna

    Center Frequency

    1575.42±1MHz

    Band Width

    CF±5MHz

    Polarization

    RHCP

    Gain

    5dBic(Zenith)

    V.S.W.R

    <1.5

    Impendance

    50Ω

    Axial Ratio

    3dB(max)

    Dimension

    25*25*4mm

    LNA

    Gain

    28±2dB

    Noise Figure

    <1.5

    Filter Insertion Loss

    <3dB

    Ex-band Attenuation

    12dB@CF+50MHz/16dB@CF-50MHz

    Supply Voltage

    2.2~5V DC

    Current Consumption

    5~15mA

    V.S.W.R

    <2.0

    Mechanical

    Cable

    RG174 or others

    Connector

    SMA/MCX/FAKRA or others

    Radome Material

    ABS

    Mounting Method

    Screw

    Environmental

    Operating Temperature

    -40℃~+85℃

    Relative Humidity

    Up to 95%

    Ingress Protection

    IP67 (exclude cable outlet)

    Vibration

    10 to 55Hz with 1.5mm amplitude 2hours

    Environmentally Friendly

    ROHS Compliant


    Advantage:

    With small size

    screw mounting

    IP67 waterproof


    Reliability

    Condition:Temperature: 40±5℃

    Load: DC=5V±0.5 V

    Quantity: 2000pcs

    Sustained Time: 480h


    1. Environmental Specifications

    Post Environmental Tolerance (Refer to the form 1~2 )

    Condition:Temperature range 25±3℃

    Relative Humidity range 55~75%RH

    Operating Temperature range-40℃~+85℃

    Storage Temperature range-40℃~+100℃

    1.1 Moisture Proof

    The device should satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature 40±2℃and the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition.


    1.2 Vibration Resist

    The device should satisfy the electrical characteristics specified in form 1~2 after applied to the vibration of 10 to 55Hz with amplitude of1.5mmfor 2 hours each in X , Y and Z directions.


    1.3 Drop Shock

    The device should satisfy the electrical characteristics specified in form 1~2 after dropping onto the hard wooden board from the height of30cmfor 3 times each facet of the 3 dimensions of the device.


    1.4 High Temperature Endurance

    The device should satisfy the electrical characteristics specified in form 1~2 after exposed to temperature 80±5℃for 24±2 hours and 1~2 hours recovery time under normal temperature.


    1.5 Low Temperature Endurance

    The device should also satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature-40℃±5℃for 24±2 hours and to 2 hours recovery time under normal temperature.

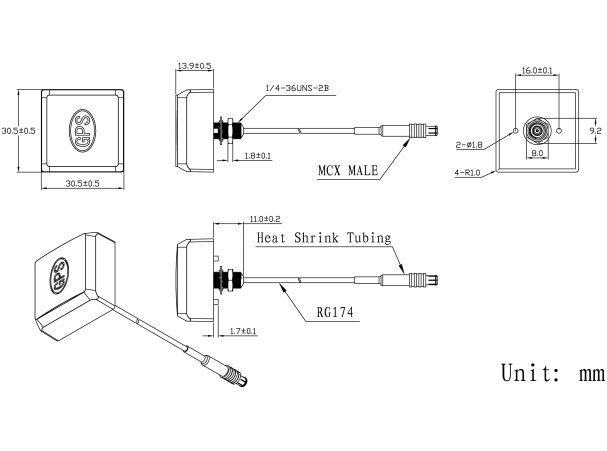

    Drawing:


    Click here to find the data sheet

    TOP-GPS06.pdf



    Our Antenna :

    ---Powerful R&D team

    ---Wonderful design solution

    ---Perfect after-sales service

    ---Strict quality testing

    ---Rich cooperation experiences with Communication product manufactures

    ---Competitive price


    FAQ

    1. What's the Warranty of the Products?

    Answer: In general, all goods with 12 month-warranty after the shipments .


    2. How about the defective rate ?

    Answer: Less than 1%.

    3. Where can customers get the Product Specification and other datasheets?

    Answer: we will send them via email once get the request from the customers.


    Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
